Description

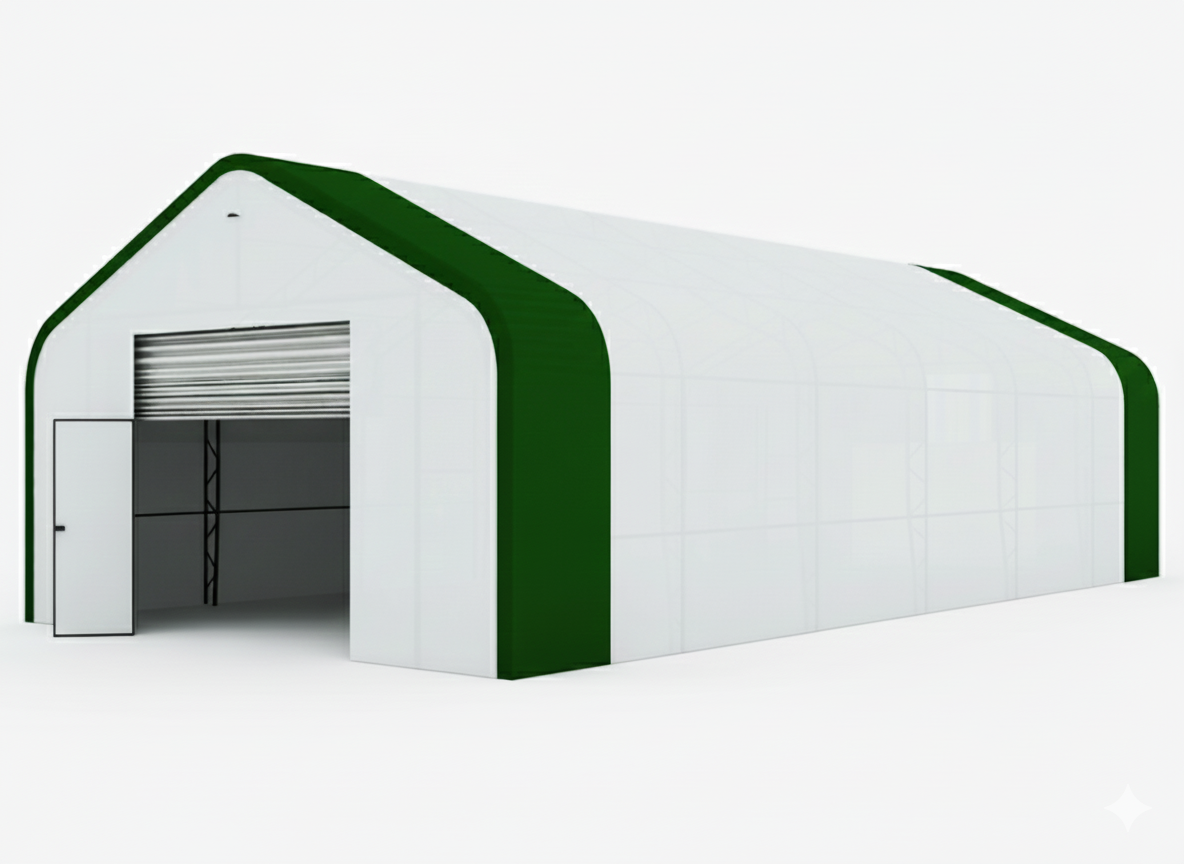

This peak-roof shelter is for sites that need real interior height and a stiffer frame. At 30 ft wide with a 20 ft center height and 10 ft side walls, the double-truss galvanized structure and tensioned fabric cover create a clear, high-volume space for trucks, machinery, and bulk materials.
Key features
-
Tall, usable volume – 30 ft span with 20 ft peak height and 10 ft side walls gives room for taller equipment, racking, or stacked pallets.
-
Flexible lengths – available in 40, 60, or 80 ft (≈ 12, 18, or 24 m) to match your yard, fleet, or laydown area.
-
Double-truss galvanized frame – closely spaced arches (about 10 ft apart) with 48 × 1.5 mm steel purlins for added rigidity and wind resistance.
-
High clearance door – winch-up front door around 14 ft wide × 13 ft high (4.3 × 3.96 m) for highway tractors, dump trucks, and loaders.
-
Cover options tuned to your climate – from economical PE to standard and heavy-duty PVC fabrics up to ~26 oz/m² (750 g/m²) for harsher snow, wind, and abrasion.
Size & specs
-
Width: 30 ft (≈ 9.15 m)
-
Lengths: 40 / 60 / 80 ft (≈ 12 / 18 / 24 m)
-
Center height: 20 ft (≈ 6.1 m)
-
Side wall height: 10 ft (≈ 3.05 m)
-
Arch spacing: ≈ 10 ft (3.05 m)
-
Frame: galvanized steel, double-truss
-
Arch & purlin: 48 × 1.5 mm
-
Door
-
Winch door opening: approx. 14 ft W × 13 ft H (4.3 × 3.96 m)
Cover choices
-
Economical PE fabric (~300 g/m²)
-
Value PVC fabric (~450 g/m²)
-
Commercial PVC fabric (~500 g/m²)
-
Standard PVC fabric (~610–650 g/m²)
-
Heavy Duty PVC fabric (~750–900 g/m², model-dependent)
Installation notes
Install on a level, well-drained base (compacted gravel or concrete) with anchors sized to local wind and snow codes. The peaked roof helps shed snow; plan for periodic inspection of cover tension and door hardware to keep the structure working quietly in the background for years.
