Description

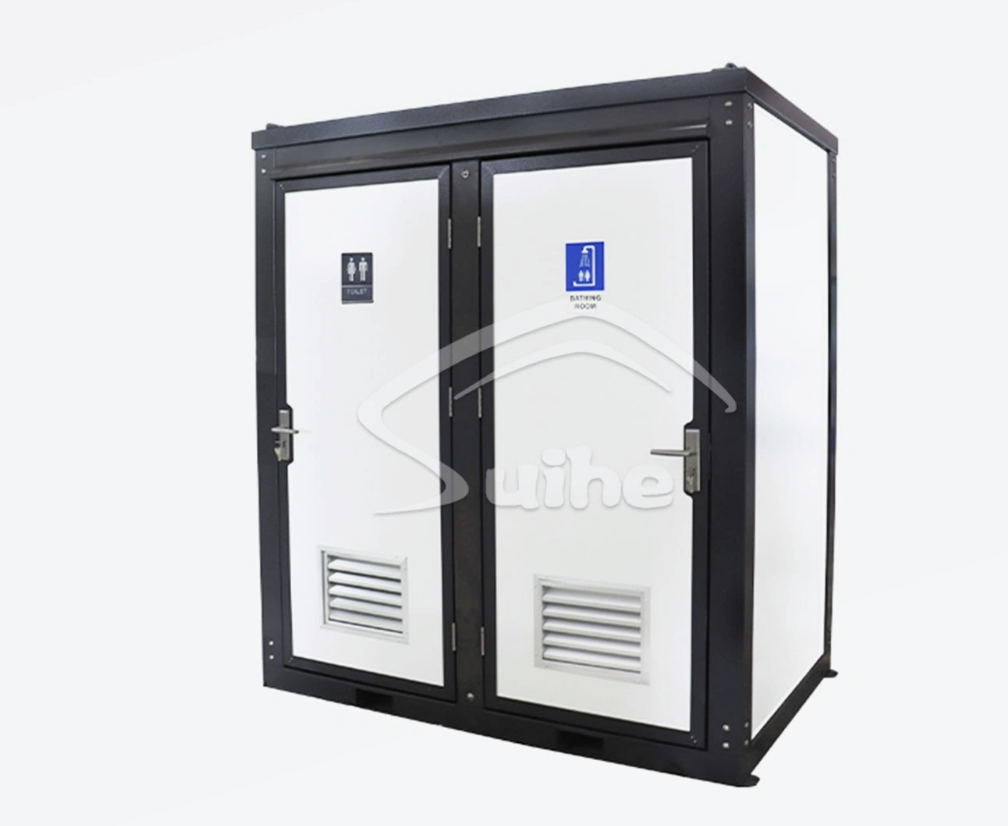

Designed for both comfort and functionality, the Double Toilet with Shower Room and Toilet Separation offers a two-room setup, one for showering and one for sanitation. This modular unit is ideal for outdoor events, construction sites, and emergency housing setups. Built with a fireproof Q235 steel frame, insulated EPS composite panels, and non-slip PVC flooring, it delivers privacy, hygiene, and long-lasting durability in any environment.
Product Description

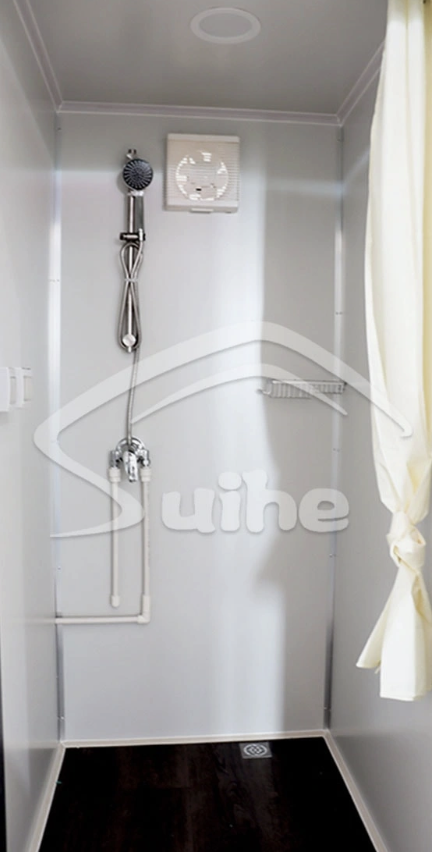

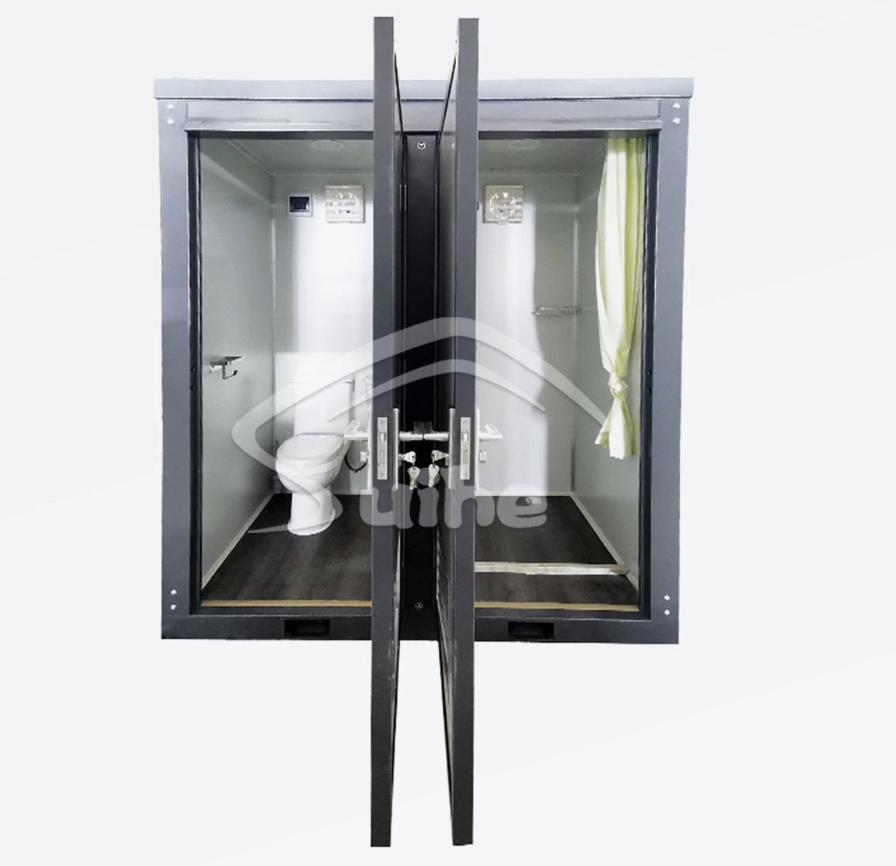

The Double Toilet with Shower Room and Toilet Separation combines modern design with practical convenience. One side functions as a complete shower room with exhaust fan and basin, while the other contains a toilet with wash basin and floor drain.
The frame is made of Q235 steel with a zinc-rich primer and light gray powder coating, ensuring corrosion resistance and stability. Both wall and roof panels use B2 fire-rated EPS foam composites for insulation and safety.
A 12 mm rigid PVC floor with 3 mm anti-slip surface keeps the interior safe and easy to clean. With concealed wiring for LED lighting, pre-installed plumbing, and built-in ventilation, this dual-use unit is perfect for high-demand sites requiring hygiene and durability.
Key Highlights
- Dual compartments separating toilet and shower areas
- Q235 steel frame with zinc-rich primer and powder-coated finish
- Fireproof EPS wall and roof panels (B2 rated)
- Integrated exhaust fan, wash basin, and accessible folding handrail
- 12 mm rigid PVC flooring with 3 mm anti-slip surface
- Concealed wiring and LED downlight system
- Hot and cold water connection system
- Delivered preassembled and easy to connect
- Low maintenance and easy to clean
Recommended Use
Construction Sites • Outdoor Events • Campsites • Emergency Shelters • Temporary Work Facilities • Public or Private Outdoor Venues
SPECIFICATIONS
| Category | Standard |
| Product Name | Double Toilet with Shower Room and Toilet Separation |
| Overall Dimensions | L2075 × W1325 × H2320 mm (≈ 7 ft × 4.5 ft × 8 ft) |
| Packing Quantity per Container | 9 Sets |
| Overall Weight | 480 kg |
| Configuration | |
| Frame | Q235 Steel Frame / Steel Roof / Patterned Ramp Platform / Zinc-rich Primer with Light Gray Powder Coating |
| Wallboard | 50 EPS Foam Composite Wallboard with Fire Protection Level B2 |
| Roof | 50 EPS Foam Composite Wallboard with Fire Protection Level B2 |
| Floor | 12 mm Rigid PVC Sheet + 3 mm Anti-slip, Wear-resistant Surface |
| Door & Window | EPS Composite Panel Outward-opening Door & Window |
| Bathroom | Exhaust Fan / Toilet / Basin / Accessible Folding Handrail / Floor Drain |
| Furniture | N/A |
| Water Supply & Drainage | Cold-Hot Water ½″ / Drain Φ40 / Toilet Drain Φ90 |
| Power Distribution | Electrical (Concealed Wiring) / LED Light |
| Fire Resistance | A1 / B2 Optional |
Component Details
| Item | Specification |
| Circuit Breaker | 16 A |
| Electric Box | Standard Electrical Box |
| Aviation Socket | 32 A |
| Switch | Wall Mounted |
| LED Down Light | 18 W |
| Shuttered Ventilation Fan | Ceiling-mounted Ventilation Fan |
| Aluminum Alloy Shutter | 400 × 300 mm |
| Wash Basin | Integrated Wash Basin |
| Toilet | Ceramic Toilet |
| Cold Water Inlet Pipe | 20 PPR Tube, Joint Specification 20 × ½″ |
| Drain Pipe | 40 PVC Tube, Outlet Pipe 40 PVC Tube |
Features
Durable • Fireproof • Dual Room Design • Plug-and-Play • Ventilated • Easy to Clean • Weather Resistant • Compact Design • Long Service Life
