Description
Quick heads-up:
- Check local rules/permits for small prefab buildings.
- Plan utilities before delivery (power for sure; water/sewer only if you’ll add a bath).
- Confirm truck access and a level pad/anchors.
Why people pick this model

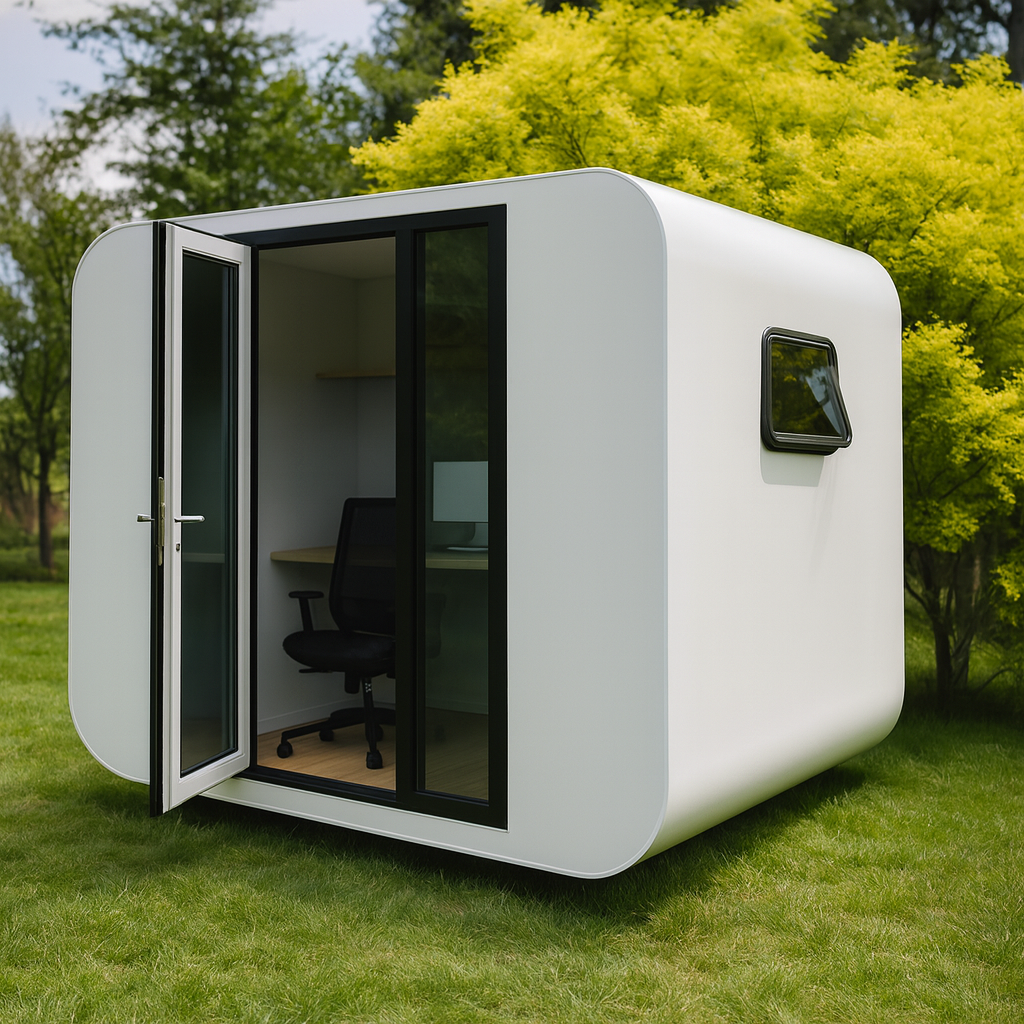

A compact, finished micro-studio that drops in fast. The shell uses a Q235 steel frame with aluminum-plastic exterior panels and EPS foam composite wall/roof panels for insulation. Interior materials are eco-grade. You get concealed electrical, lighting, and built-in storage, plus push-out side windows and a double-glazed front door for light without losing heat.
Highlights
- Ready fast – factory-built shell with wiring, lighting, outlets/sockets, and main breaker.
- Warm & quiet – double-glazed tempered glass, insulated EPS composite walls/roof.
- Weatherable exterior – powder-coated chassis + aluminum-plastic cladding.
- Ventilation & light – screened push-out side window + top spotlight + shadowless strip light.

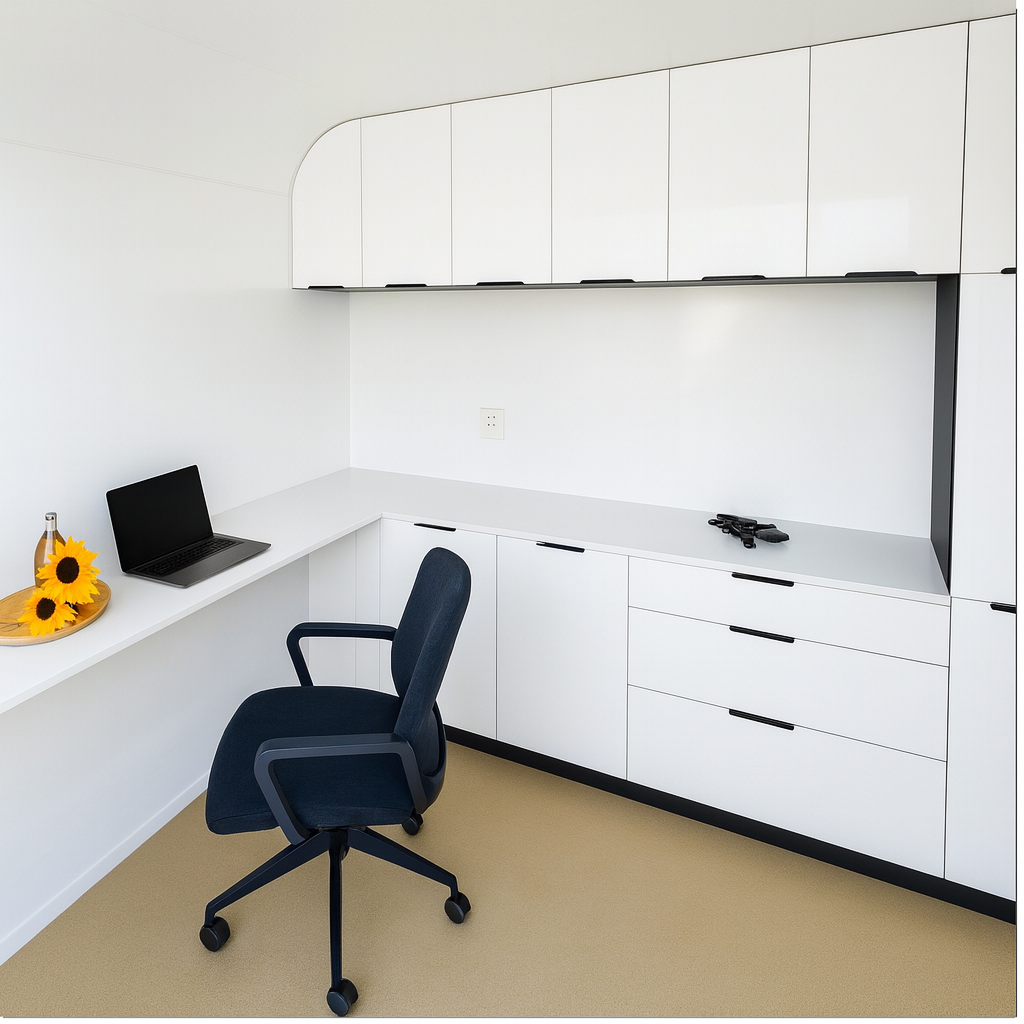

- Built-ins included – L-shaped desk, wall cabinet, storage cabinet.
- “Dry” by default – no bathroom or plumbing out of the box; add locally when you’re ready.
Good for
Backyard office • Creator studio • Guest overflow • Site office • Hobby room / gym corner
Plan for
- Pad/anchors: level base and tie-downs per your local code.
- Power: electrician to land supply on the unit’s distribution box (ships with 2P32A main).
- Upgrades: HVAC mini-split, extra outlets, interior fit-out, or plumbing package.
Core Specs
- Overall size (L×W×H): 2900 × 2205 × 2250 mm → 9 ft 6 in × 7 ft 3 in × 7 ft 4 in (approx.)
- Weight: 830 kg → ~1,830 lb
- Packout: 4 sets / 40HC container (typical)
- Structure: Q235 steel frame; glass-steel plate roof; aluminum-plastic front/rear panels; sandblasted & powder-coated chassis
- Walls/Roof: Fire-rated B2 EPS foam composite panels
- Floor: 15 mm eco board + 3 mm anti-slip wear-resistant floor leather
- Front door set: Broken-bridge aluminum, 2120 × 1750 mm (≈ 83.5 × 68.9 in), double-glazed tempered glass
- Side window: Outward-opening with screen, 700 × 400 mm (≈ 27.6 × 15.7 in), double-glazed tempered glass
- Electrical (concealed): Distribution box, 2P32A circuit breaker, sockets/outlets, switch, shadowless strip lamp, top spotlight
- Furniture (included): L-shaped desk, wall-mounted cabinet, storage cabinet
- Bathroom: None (dry)
- Water/Drain: None (pre-wiring only if ordered)
- Fire performance: B2 standard (A1/B2 optional capability noted by factory)
Full Specifications
| Category | Standard / Details |
| Item | 3 m Prefab Tiny Cube (10FT class) |
| Dimensions (mm) | L2900 × W2205 × H2250 |
| Dimensions (imperial) | ~9 ft 6 in × 7 ft 3 in × 7 ft 4 in |
| Overall Weight | 830 kg (~1,830 lb) |
| Packing per 40HC | 4 sets |
| Main Structure | Q235 steel frame; glass-steel plate roof; aluminum-plastic front/rear panels; sandblasted chassis with black outdoor powder coat |
| Wallboard | Fire-rated B2 EPS foam composite |
| Roof Board | Fire-rated B2 EPS foam composite |
| Floor | 15 mm ecological board + 3 mm anti-slip, wear-resistant floor leather |
| Doors & Windows | White broken-bridge aluminum outward-opening windows; broken-bridge aluminum single-opening doors |
| Front Door Glazing | Double-glazed insulated tempered glass |
| Side Window (mm / in) | 700 × 400 (≈ 27.6 × 15.7 in), black, double-glazed insulated tempered, with screen |
| Front Door (mm / in) | 2120 × 1750 (≈ 83.5 × 68.9 in), black, double-glazed insulated tempered |
| Electrical (Concealed) | Distribution box; Circuit Breaker 2P32A; sockets/outlets; switch; strip-type shadowless lamp (wide voltage, cool white); top spotlight |
| Hardware | Stainless steel full/half-compression hinges; pressure bar |
| Furniture (Included) | L-shaped desk; wall-mounted cabinet; storage cabinet |
| Bathroom | None (dry unit) |
| Water Supply & Drainage | None (add locally if required) |
| Fire Performance | B2 standard (A1/B2 optional per factory) |
