Description
Quick heads-up
- Check local installation rules for prefab structures (anchoring, pad base, snow/wind load).
- Plan utilities — unit ships pre-wired (2P32A main); water/drain optional.
- Confirm truck clearance and a solid level pad before delivery.
Why people pick this model
The 6-Meter Shaped Expansion Capsule is a bold evolution of compact prefab design. Its curved silhouette, full-glass façade, and extendable interior make it one of the most stylish and livable capsules in the series.
The shell uses a Q235 steel frame with aluminum-plastic cladding and 65 mm flame-retardant composite insulation, providing strength, soundproofing, and energy efficiency. Inside, a finished stainless kitchen module, LED lighting, and a complete bathroom set deliver modern comfort right out of the box.
Highlights
- Architectural design – rounded “capsule” form with panoramic glass front.
- Turn-key comfort – pre-wired, insulated, and fitted with lighting and outlets.
- Weather-sealed structure – powder-coated steel chassis and composite panels.
- Ready kitchen & bathroom – includes stainless countertop, sink cabinet, toilet, shower, and basin.
- Thermal & sound insulation – fire-rated EPS and double-glazed glass for quieter, efficient living.
- Expandable layout – slides open to enlarge the interior footprint when deployed.
Good for
Backyard suite • Studio • Short-term rental • Remote office • Showroom • Guest pod
Core Specs
- Overall size (L×W×H): 5950 × 2260 × 2490 mm → 19 ft 6 in × 7 ft 5 in × 8 ft 2 in
- Expanded size: ≈ 19 ft 6 in × 12 ft 9 in × 8 ft 2 in
- Weight: 2100 kg ≈ 4 630 lb
- Pack-out: 2 sets / 40 HC container
- Frame / body: Q235 steel frame / aluminum plate panels / powder-coated chassis
- Walls / roof: 65 mm flame-retardant board + 9 mm wood-plastic + aluminum sheet
- Floor: 20 mm fireproof board + 3 mm anti-slip vinyl leather
- Doors & windows: Tempered glass car-type windows / insulated aluminum folding and sliding doors

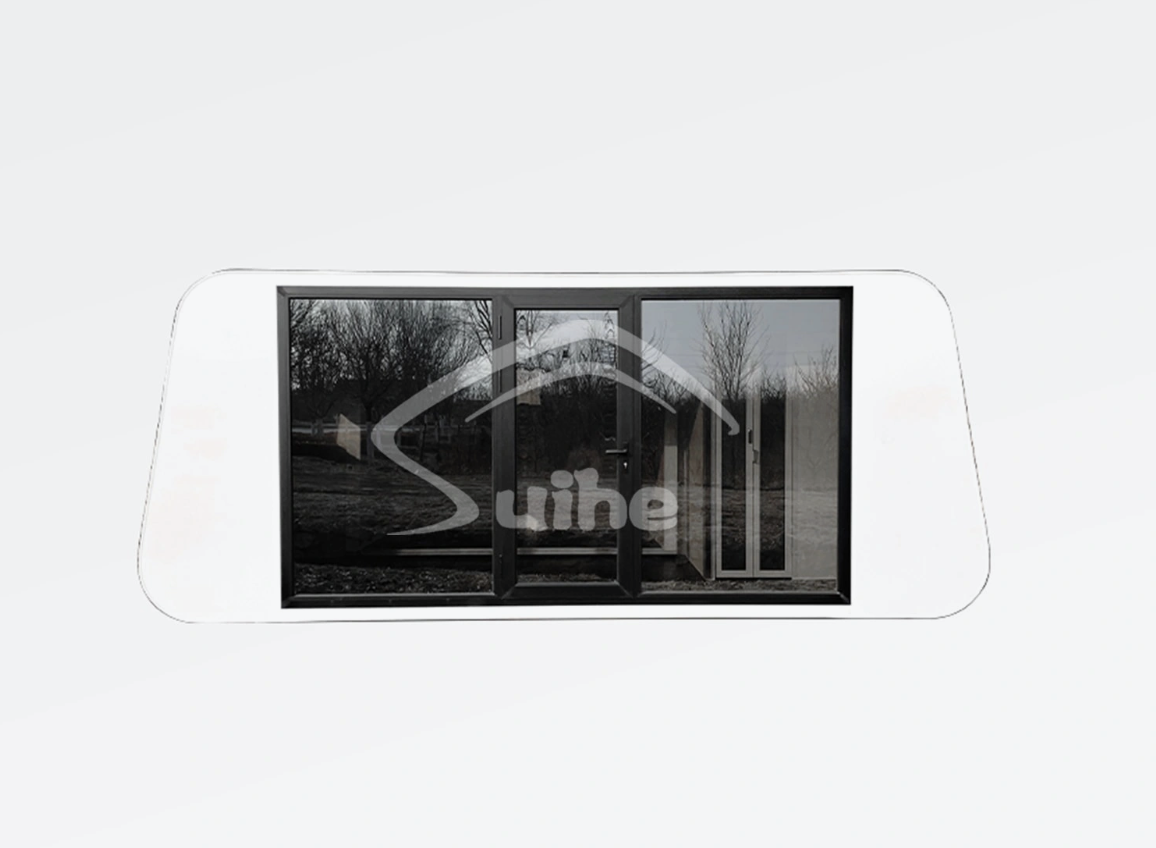

- Windows (detail): H400 × W700 mm (15.7 × 27.6 in) and H450 × W500 mm (17.7 × 19.7 in) black tempered glass
- Lighting: Ceiling lamp + wide-beam downlight (Ø 95 mm, cold white light)
- Electrical: 2P32A breaker / 8-wire distribution box / leak protector / switch / socket / waterproof plug
- Bathroom: Vent fan / toilet / washbasin / dish basin faucet / mirror / shower head / partition / floor drain
- Kitchen / furniture: Stainless countertop / sink cabinet / hanging cabinet / stove top / storage
- Plumbing: Hot & cold ½ in feed / drain Ø 40–50 mm / toilet Ø 125 mm (4.9 in)
- Fire resistance: A1 / B2 (optional)
- Part number: 0402000020
Plan for
- Pad / anchors: Level base and tie-downs to local code.
- Power: Connect via certified electrician to 2P32A breaker (main panel included).
- Water / drain: Stub ½″ supply and Ø 1.5–2″ drains if plumbing is required.
- Upgrades: HVAC mini-split, solar input kit, extra cabinetry or custom lighting package.
Full Specifications
| Category | Standard / Details |
| Product Name | 6 m Push-Out Pod House Type B (Shaped Expansion Capsule) |
| Dimensions (mm) | L5950 × W2260 × H2490 Unfold: 5950 × 3900 × 2490 mm |
| Dimensions (imperial) | 19 ft 6 in × 7 ft 5 in × 8 ft 2 in (closed) → 19 ft 6 in × 12 ft 9 in (open) |
| Packing per Container | 2 sets / 40 HC |
| Overall Weight | 2100 kg (≈ 4 630 lb) |
| Main Body | Q235 steel frame / aluminum plate / aluminum-plastic front and rear panels / sand-blasted black chassis |
| Wall Panel | 65 mm flame-retardant board + 9 mm wood-plastic + 3 mm aluminum-plastic board |
| Roof / Side Panel | 65 mm flame-retardant board + 9 mm wood-plastic + 9 mm plywood + 0.8 mm aluminum sheet |
| Floor | 20 mm fireproof board + 3 mm anti-slip floor leather |
| Doors & Windows | Tempered glass car windows / insulated aluminum doors / folding doors / sliding doors |
| Bathroom | Vent fan / toilet / washbasin / dish basin / mirror / shower head / partition / floor drain |
| Furniture | Stainless countertop / sink cabinet / hanging cabinet / kitchen cabinet / stove top |
| Water Supply & Drainage | Hot & cold ½″ / drain Ø 40 – 50 mm / toilet sewage Ø 125 mm (4.9 in) |
| Electrical System | Distribution box / 2P32A breaker / leak protector / ceiling lamp / downlight / switch / socket / waterproof plug |
| Windows (tempered) | H400 × W700 mm and H450 × W500 mm black tempered glass |
| Lighting | Ceiling lamp + wide-beam downlight (Ø 95 mm, cold white light) |
| Fire Resistance | A1 / B2 (optional) |
| Part Number | 0402000020 |
Configuration Details
| Item | Specification |
| Circuit Breaker | 2P32A |
| Distribution Box | Eight-wire distribution box |
| Aviation Socket | 32 A |
| Switch | Standard switch |
| Wide-beam Downlight | Ø 95 mm circular, cold white light |
| Ventilator | Ceiling-mounted vent fan |
| Ceiling Light | Integrated LED panel |
| Wash Basin | Ceramic basin with cabinet |
| Ceramic Toilet | Standard eco flush |
| Cold Water Inlet Pipe | 20 ft feed pipe (½″ spec joint 20 × ½) |
| Drain Pipe | Ø 40 / 50 mm PVC |
| Shower Base | Non-slip floor tray |
| Shower Faucet | Standard chrome set |
| Broken-Bridge Aluminum Doors | Double-hollow tempered glass |
| Tempered Glass Sliding Windows | H400 × W700 mm & H450 × W500 mm black tempered car-type glass |
Features at a Glance
Modern Design • High Quality • Fully Finished Prefab • Easy Installation • Removable • Heat Insulation • Soundproof • Shock Resistant • Durable • Comfortable
