A compact and durable prefab office module designed for quick deployment and versatile use. Built with a Q235 steel frame and EPS insulated panels, this 13-foot modular unit provides a comfortable, weather-resistant workspace ideal for construction sites, remote operations, or temporary office setups. Its plug-and-play systems for power, water, and lighting make it fully functional upon delivery.
Product Description

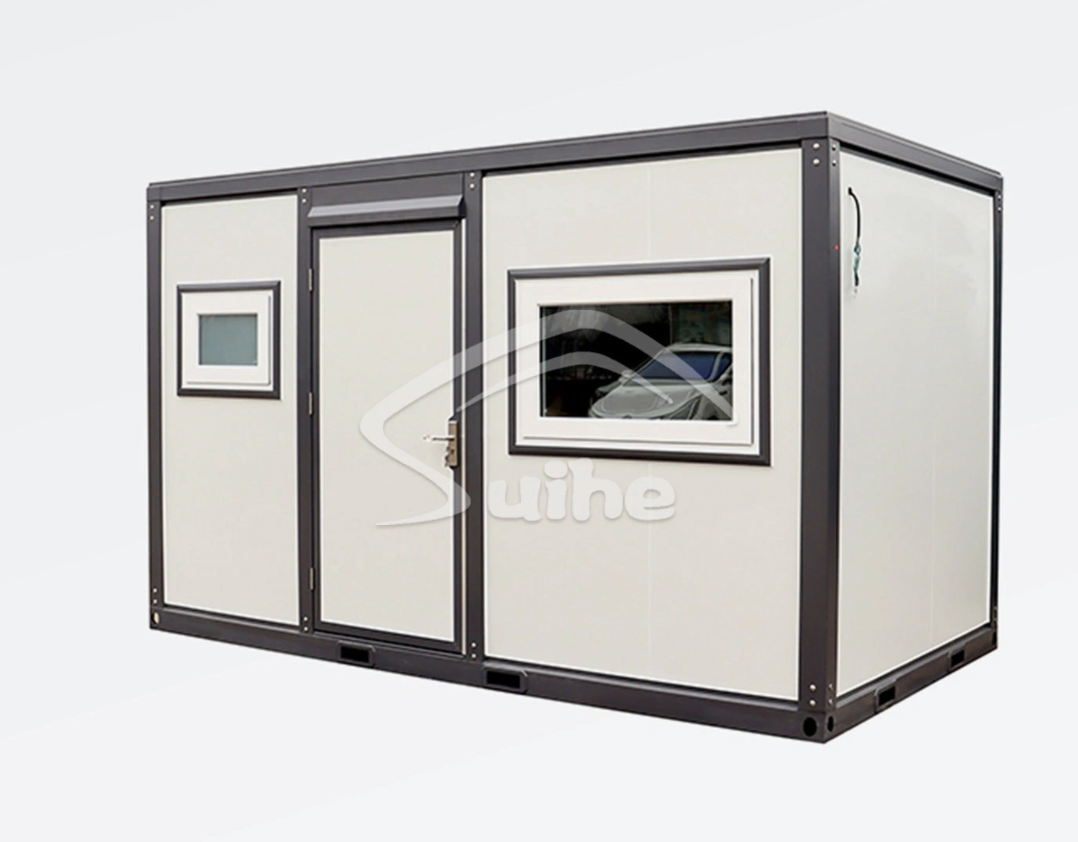

The Portable Office W7FT × L13FT is a self-contained workspace solution that combines portability, comfort, and structural strength. Constructed with a fire-rated steel frame and insulated EPS wall panels, it provides superior heat and sound insulation while maintaining a clean, professional look.

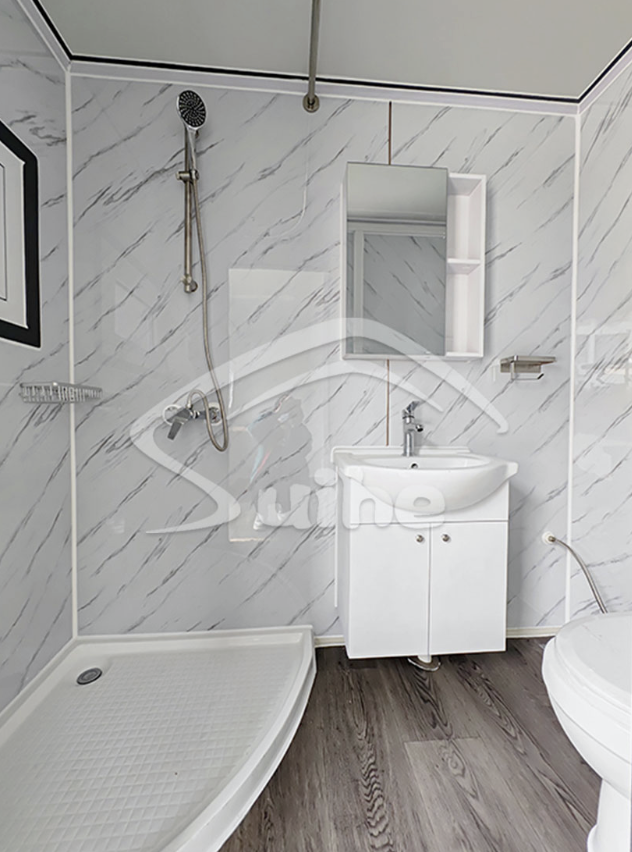

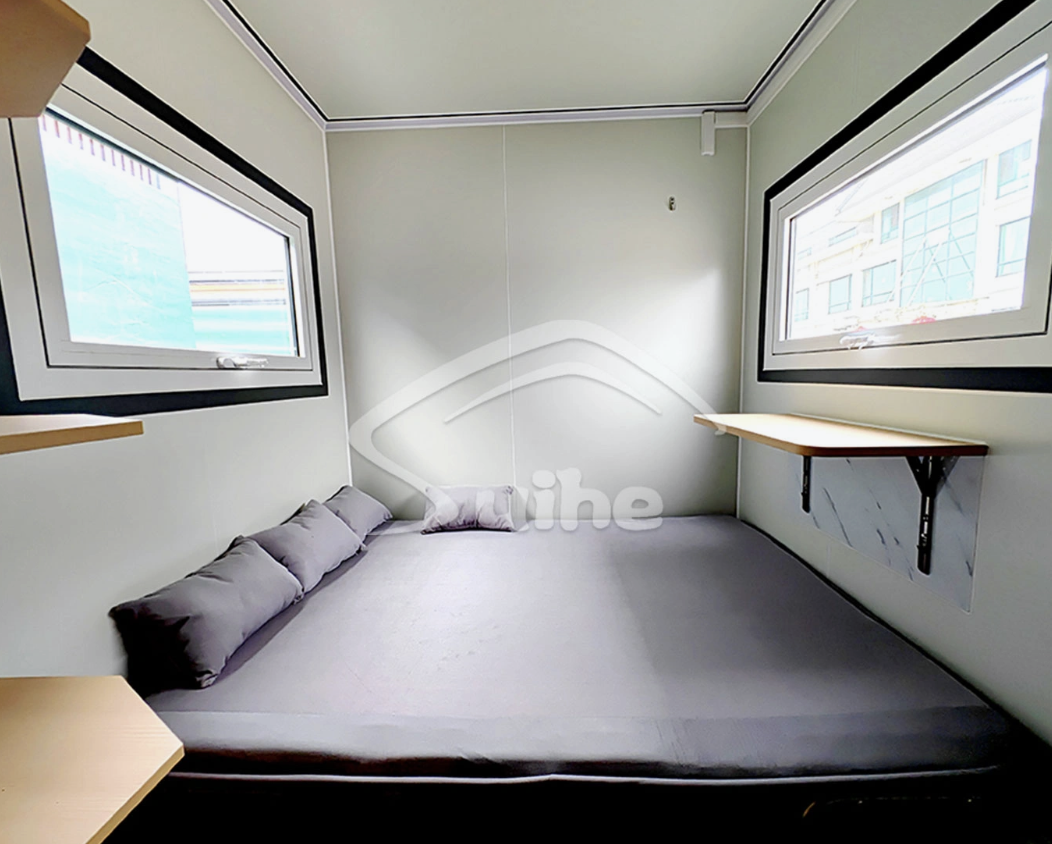

Inside, the unit features a foldable sofa bed, a built-in desk, a hanging closet, and a fully equipped bathroom with a ceramic toilet, wash basin, and fan-shaped acrylic shower. Electrical and plumbing systems come pre-installed, including a 16A circuit breaker, waterproof sockets, and a concealed wiring layout for safety. Compact yet fully functional, this office is ideal for short-term or semi-permanent installations where fast setup and comfort are key.
Key Highlights
- Q235 steel frame and zinc-coated structure for long-term durability
- Fireproof EPS wallboard and UV-protected composite roof panels
- Pre-installed electrical system with breaker, sockets, and LED lighting
- Complete plumbing setup with water pump, drainage, and tank system
- Foldable sofa bed, desk, and closet maximize interior space
- Bathroom includes ventilation fan, shower, and ceramic toilet
- Easy to transport, assemble, and relocate
Recommended Use
Construction Site Offices • Temporary Housing • Security Booths • Remote Workstations • Field Operations
SPECIFICATIONS
| Category | Standard |
| Product Name | 0212-13 Mobile Office |
| Overall Dimensions | L3970 × W2180 × H2450 mm (≈ 13 ft × 7 ft × 8 ft) |
| Packing Quantity per Container | 3 Sets |
| Overall Weight | 1350 kg |
| Main Structure | |
| Main Part | Q235 steel frame / Steel plate roof / Zinc-rich bottom coating |
| Wallboard | Fireproof B2 EPS composite + UV board |
| Roofboard | Fireproof B2 EPS composite + UV board |
| Floor | 12 mm rigid PVC + 3 mm anti-slip wear-resistant plastic floor |
| Doors & Windows | EPS composite inward-opening door / Broken bridge aluminum windows |
| Bathroom | Ventilating fan / Wash basin / Mirror cabinet / Shower head / Shower base / Shower curtain / Floor drain / Wooden door |
| Furniture | Folding sofa bed / Hanging closet / Foldable desk |
| Water Supply & Drainage | Hot-cold water inlet ½″ / Drain Φ50 / Toilet discharge Φ90 |
| Power Distribution | Concealed wiring / 16A Circuit breaker / LED light / Socket |
| Fire Resistance | A1 or B2 optional |
Component Details
| Item | Specification |
| Circuit Breaker | 16 A |
| Distribution Box | Standard enclosed unit |
| Aviation Socket | 32 A |
| Junction Box | Standard electrical junction |
| Switch | Wall-mounted switch |
| Socket | Universal power socket |
| Louver Ventilating Fan | Ceiling-mounted ventilation system |
| Anti-Ceiling Lights | LED lights, 18 W each |
| Shower Room | 900 × 900 mm fan-shaped acrylic base |
| Wash Basin | 550 mm ceramic basin with cabinet |
| Windows | Aluminum outward-opening W1180×H650 mm & W690×H500 mm |
| Door | Wooden 1960 × 720 mm |
| Toilet | Ceramic, bottom discharge |
| Pipes | 20 PPR water pipe, 40 + 50 PPR drainage |
Features
Modern Design • Compact Footprint • Plug-and-Play Utility • Fully Finished Interior • Heat Insulated • Soundproof • Durable Steel Frame • Quick Setup • Weather-Resistant
